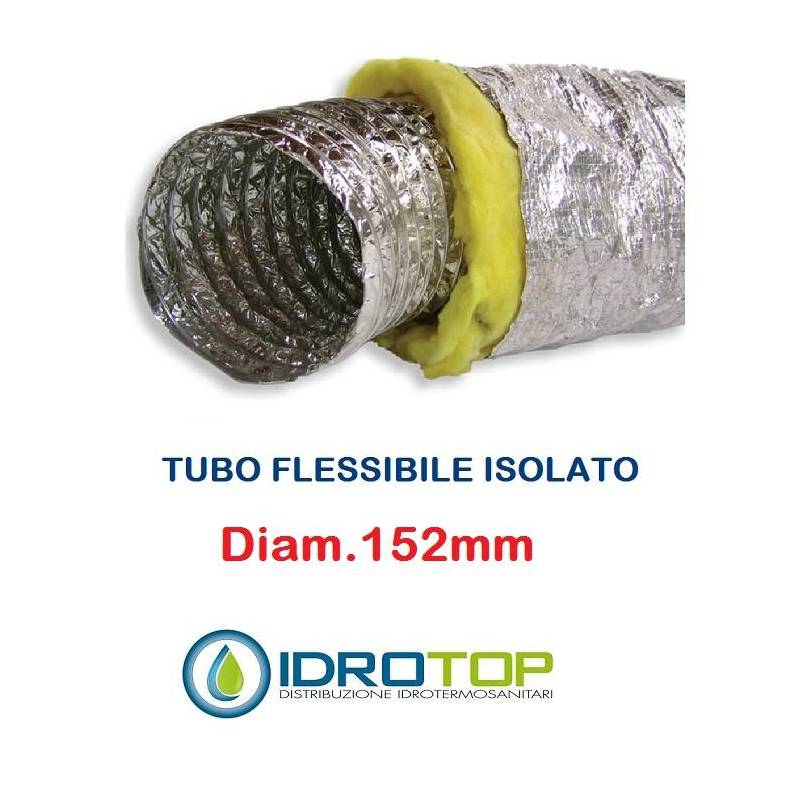

FLEXIBLE ISOLATED TUBE in aluminum -double wall-

FLEXIBLE TUBE isolated made with an inner channel in aluminum/polyester micro-pierced, a mat isolating made of fibre glass with a thickness of 25 mm and density of 16 Kg/m3 and an outer protection also this made of aluminum/polyester.

Adapt to differents types of civil and industrial systems of ventilation, conditioning and heating.

Available in class 1M

ID-I26-82 tubo flex diam.  182  10 mt

TECHINICAL DETAILS OF THE PRODUCT:

Class of reaction to the fire:              M1
Temperature inner management:       -30°C/+140°C
Temperature outer management:      -30°C/+140°C
Max air Speed:                                     30 m/sec
Pressure max:                                     2500 Pa



COMPANY:

IDROTOP Clima
